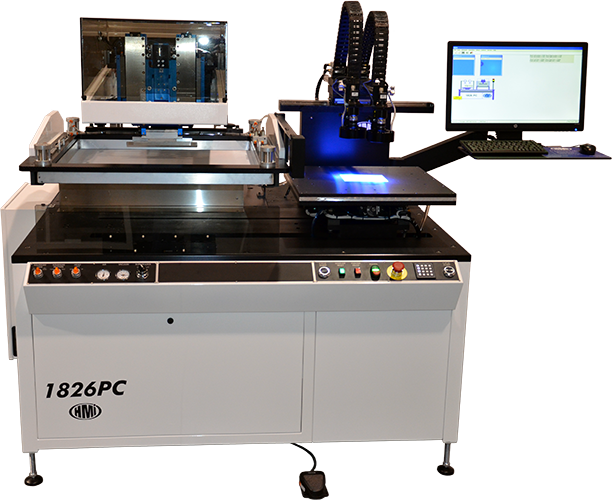

MSP-1826 Automatic Screen Printer
Computer Controlled with Integrated Automatic Vision Alignment
This printer accommodates up to a 29" x 29" OD screen and includes an easy to use operator interface, unlimited recipe storage as well as automatic vision alignment of the substrate to the screen image.
The MSP-1826 takes the MSP-1825PC to the next level: full automation.
All the precision elements of the MSP-1825 and MSP-1825PC are now combined with a fully automated vision system. The manually adjusted tooling stage is replaced by a servo driven tooling stage. The servo adjusted axis mechanisms allow the vision system to move the stage as required to precisely align the screen to the substrate. Combined with an optional programmable print head, the entire printer can be controlled through the Graphic User Interface (GUI).The MSP-1826 can be a fully automated stand-alone printer or it can be fully integrated into an automated assembly process.
Key features include:
- Electric Servo Squeegee Drive
- Automated Vision Alignment w/Motorized X, Y, T Positioning Stage
- Pneumatic Clamping Screen Frame Attach
- Graphic Operator Interface, Keyboard and Monitor
- Computer Control System w/Setup Recipe Save and Restore
- Stand-alone, In-Line Capable Configuration
Maximum Print Capabilities
| Maximum Screen Size (ID): | 29” x 29” OD (736mm x 736mm) |
| Maximum Substrate Size: | 21” x 21” (533mm x 533mm) |
| Maximum Print Area: | 18” x 20” (457mm x 508mm) |
Compare to Similar Models
| MSP-1826 | MSP-1825 | MSP-1825PC | |
|---|---|---|---|
| Maximum Screen Size (ID) | 29” x 29” OD (736mm x 736mm) | 29” x 29” (736mm x 736mm) | 29” x 29” (736mm x 736mm) |
| Maximum Substrate Size | 21” x 21” (533mm x 533mm) | 21” x 21” (533mm x 533mm) | 21” x 21” (533mm x 533mm) |
| Maximum Print Area | 18” x 20” (457mm x 508mm) | 18” x 20” (457mm x 508mm) | 18” x 20” (457mm x 508mm) |
| Machine Dimensions (W x D x H) | 66” x 75” x 60” (1.68m x 1.91m x 1.53m) | 61” x 66” x 60” (1.55m x 1.68m x 1.53m) | 66” x 75” x 60” (1.68m x 1.91m x 1.53m) |
| Machine Weight (Approximate) | 1550 lb (705 kg) | 1400 lb (635 kg) | 1550 lb (705 kg) |
| Vision Alignment | Automatic | Manual | Manual |
| Operator Interface | GUI, computer keyboard and monitor | GUI, computer keyboard and monitor | Color touchscreen |
| Request a Quote | See Product | See Product |
